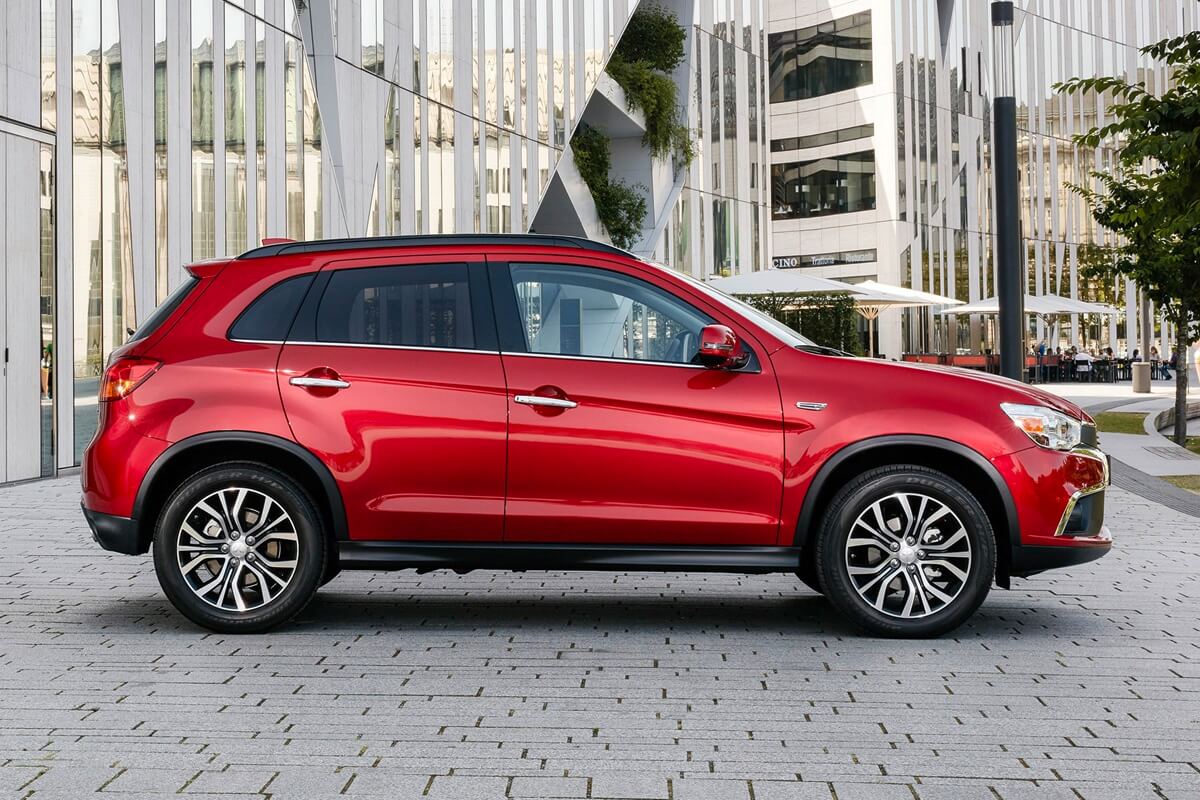

The Mitsubishi ASX 1.6 DI-D produced from 2016 to 2017 offers a diesel powertrain with 114 hp, a manual transmission and front-wheel drive. Below you find all technical data regarding the powertrain, performance, weights, consumption and more.
Also view:
| Total powertrain | |
| Fuel type | Diesel |
| System power | 84 kW (114 hp) |
| System power range | 3600 rpm |
| System torque | 270 Nm |
| System torque range | 1750 rpm |
| Transmission type / Gears | Manual / 6 |
| Drivetrain | Front-wheel drive |
| Combustion engine | |
| Engine type / Number of cylinders | In-line / 4 |
| Valves per cylinder | 2 |
| Displacement | 1560 cc |
| Bore | 75.00 mm |
| Stroke | 88.30 mm |
| Compression ratio | 18.0 :1 |
| Acceleration 0–100 km/h | 11.2 s |
| Top speed | 182 km/h |
| Front tyre size (standard) | 215/70 R16 |
| Rear tyre size (standard) | 215/70 R16 |
| Front wheel size (standard) | 16" |
| Rear wheel size (standard) | 16" |
| Front brake type | Ventilated discs |
| Rear brake type | Discs |
| Front brake diameter | 294 mm |
| Rear brake diameter | 302 mm |
| Kerb weight | 1355 kg |
| Gross vehicle weight | 1980 kg |
| Roof load capacity | 80 kg |
| Towing capacity (unbraked) | 695 kg |
| Towing capacity (braked) | 1400 kg |
| Fuel consumption | |
| NEDC consumption combined | 4.6 L/100 km |
| NEDC consumption low | 5.2 L/100 km |
| NEDC consumption high | 4.2 L/100 km |
| Fuel tank capacity | 60 L |
| CO₂-emissions | |
| NEDC CO₂ combined | 119 g/km |
| Emission class | Euro 6b |
